GRC raised access floor\BARE TYPE
Go to our products
Inquiry

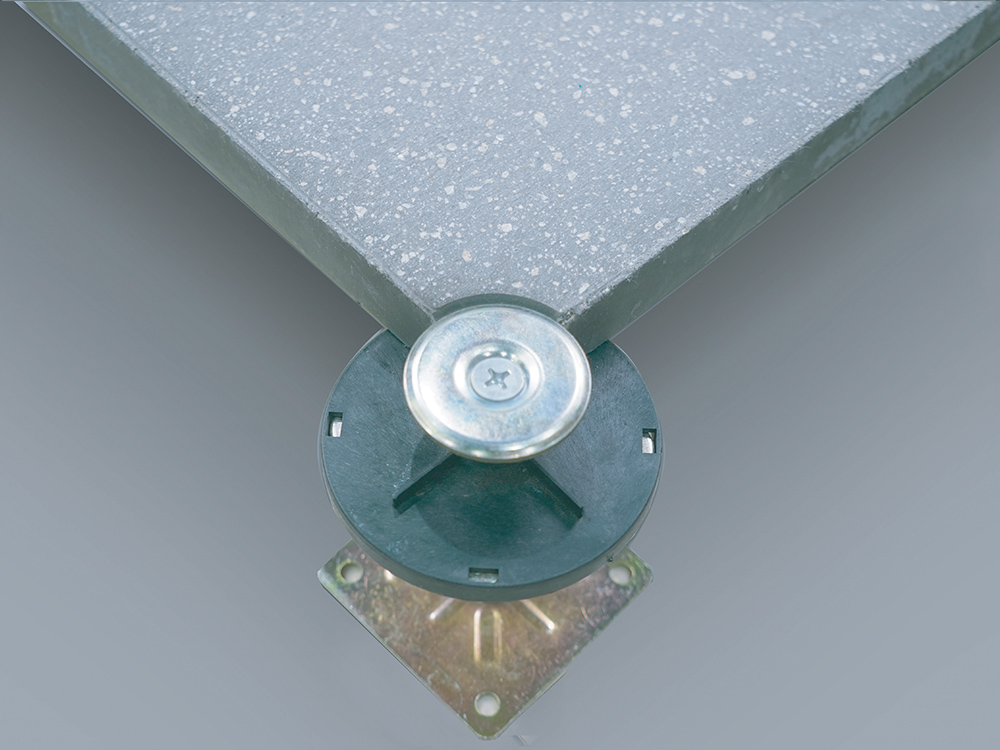

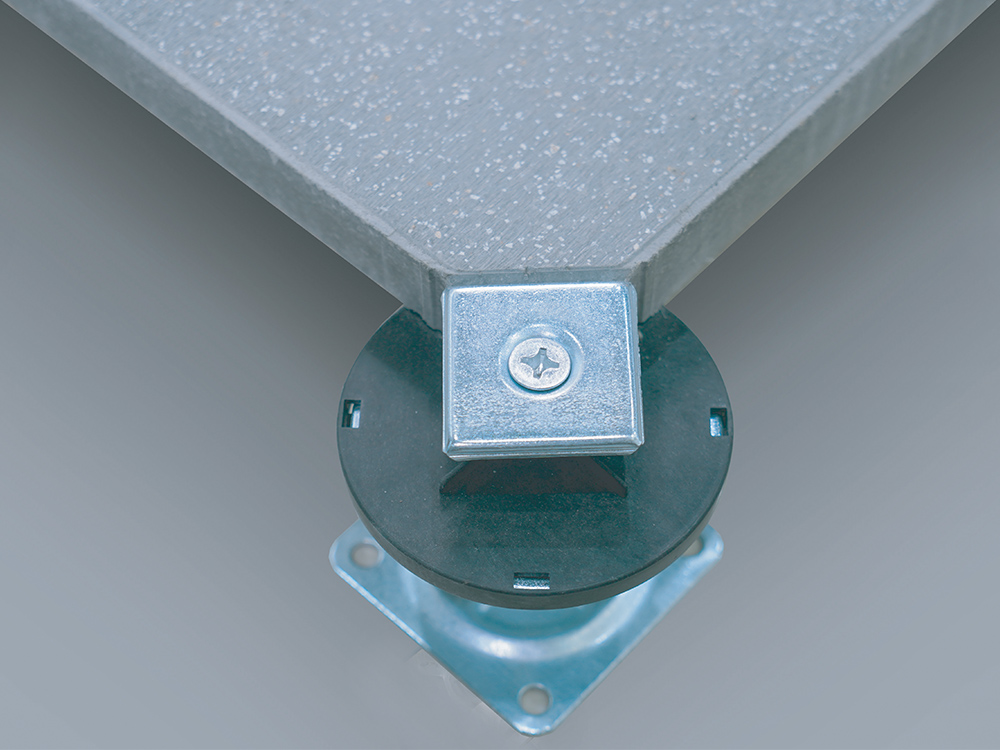

Product Structure
Its uses high-quality cement as the main raw material, combined with reinforcing fiber and galvanized steel plate surface layer only.
Applicability
5A office buildings and intelligent office space.
Specification
Type | Size | Concentrated Load | Uniform Load | Ultimate Load | Rolling Load | Impact Load | Standard |
(mm) | (N) | (N/ ㎡ ) | (N) | 10000passes | (N) | ||
OA500G-Q | 500x500 | 2950 | 12500 | 8850 | 2250 | 450 | CISCA&GB/T 36340-2018 |
OA500G-B | 500x500 | 4450 | 23000 | 13500 | 3550 | 670 | |
Flatness | ≤0.6mm | ||||||
Vertical | ≤0.3mm | ||||||
